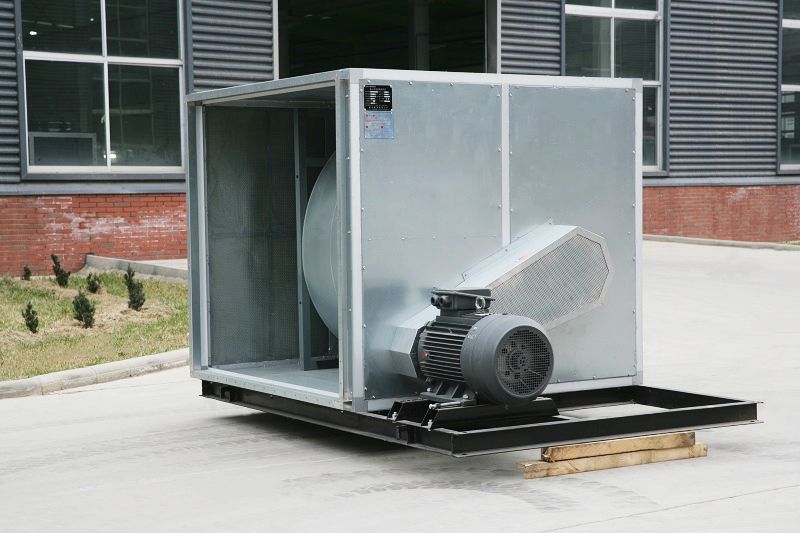

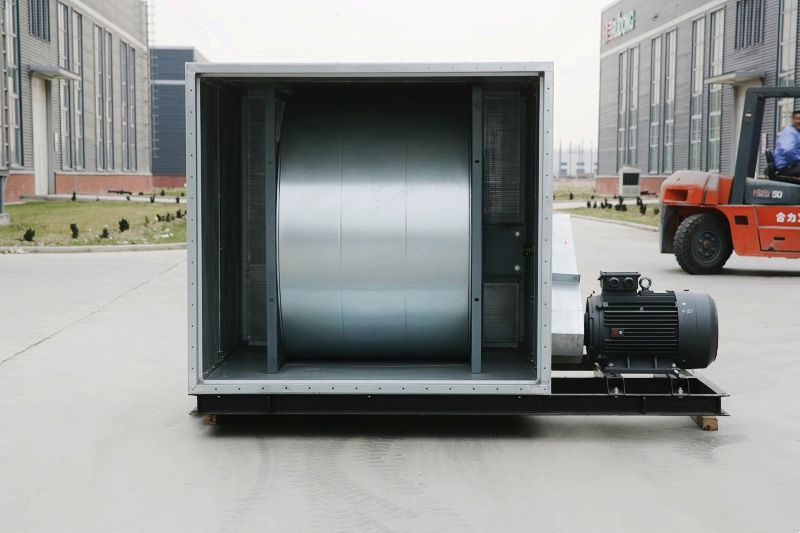

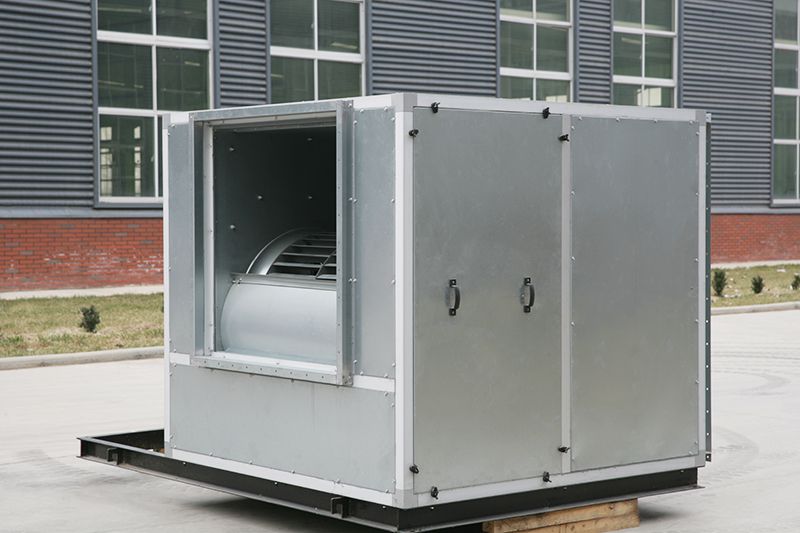

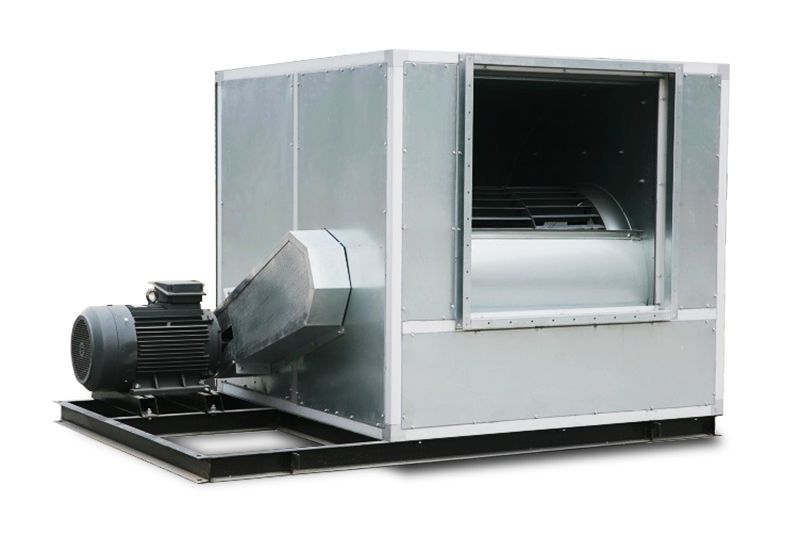

Caisson de ventilation centrifuge / Caisson de ventilateur centrifuge / Caisson d'extraction
Applications
Les ventilateurs conviennent parfaitement à la ventilation et à l'évacuation des fumées dans les hôtels, les restaurants, les auditoriums, les théâtres, les sous-sols, les immeubles de bureaux des entreprises industrielles et minières et d'autres environnements. Ils sont notamment utilisés dans les endroits où un faible niveau sonore et un grand débit d'air sont indispensables à la ventilation et à l'évacuation des fumées.
Télécharger
Paramètres
| Ventilateur centrifuge HTFC à vitesse unique - lutte contre l'incendie | |||||
| Ventilateur No. | Modèle | Puissance (kw) | Vitesse (tr/min) | Plage de volume d'air （m3/h) |
Plage de pression d'air (Pa) |
| 9 | HTFC 9#(F)Bb |
1.5 | 1450 | 3720 | 401 |
HTFC 9#(F)Bc |
1.1 | 1450 | 4000 | 460 | |
HTFC 9#(F)Bc |
0.75 | 1450 | 3500 | 250 | |
HTFC 9#(F)Bd |
0.55 | 1450 | 3150 | 184 | |
| 10 | HTFC 10#(F)Bb |
2.2 | 1450 | 5415 | 547 |
HTFC 10#(F)Ba |
1.5 | 1450 | 5200 | 400 | |
HTFC 10#(F)B |
1.1 | 1450 | 4000 | 410 | |
HTFC 10#(F)Bc |
0.75 | 1450 | 3530 | 328 | |
HTFC 10#(F)Bd |
0.55 | 1450 | 3230 | 248 | |
| 12 | HTFC 12#(F)Bc |
4 | 1450 | 8300 | 700 |
HTFC 12#(F)Bb |
3 | 1450 | 8048 | 546 | |
HTFC 12#(F)Ba |
2.2 | 1450 | 6750 | 478 | |
HTFC 12#(F)B |
1.5 | 1450 | 6100 | 353 | |
HTFC 12#(F)Bd |
1.1 | 1450 | 5120 | 338 | |
| 12.5 | HTFC 12.5#(F)Bc |
4 | 1450 | 9250 | 520 |
HTFC 12.5#(F)Bb |
3 | 1450 | 8280 | 500 | |
HTFC 12.5#(F)Ba |
2.2 | 1450 | 8057 | 452 | |
HTFC 12.5#(F)B |
1.5 | 1450 | 6868 | 390 | |
HTFC 12.5#(F)Bd |
1.1 | 1450 | 6100 | 250 | |
| 14 | HTFC 14#(F)B |
5.5 | 1450 | 11671 | 820 |
HTFC 14#(F)Ba |
4 | 1450 | 11322 | 550 | |
HTFC 14#(F)Bd |
3 | 1450 | 10350 | 444 | |
HTFC 14#(F)Bb |
2.2 | 1450 | 9233 | 400 | |
HTFC 14#(F)Bc |
1.5 | 1450 | 8057 | 300 | |
HTFC 14#(F)Be |
2.2 | 960 | 10000 | 198 | |
HTFC 14#(F)Bf |
1.5 | 960 | 9000 | 151 | |
| 15 | HTFC 15#(F)B |
15 | 1450 | 16000 | 680 |
HTFC 15#(F)Bj |
11 | 1450 | 15800 | 670 | |
HTFC 15#(F)Be |
7.5 | 1450 | 14000 | 610 | |
HTFC 15#(F)B0 |
5.5 | 1450 | 12050 | 580 | |
HTFC 15#(F)Ba |
4 | 1450 | 10500 | 560 | |
HTFC 15#(F)Bd |
3 | 1450 | 9500 | 495 | |
HTFC 15#(F)Bb |
2.2 | 1450 | 8250 | 344 | |
HTFC 15#(F)Bc |
1.5 | 1450 | 8250 | 344 | |
HTFC 15#(F)Bg |
4 | 960 | 14010 | 300 | |
HTFC 15#(F)Bh |
3 | 960 | 12400 | 180 | |
HTFC 15#(F)Bi |
2.2 | 960 | 11030 | 210 | |
| 18 | HTFC 18#(F)Be |
11 | 1450 | 18755 | 900 |
HTFC 18#(F)Bd |
7.5 | 1450 | 17910 | 642 | |
HTFC 18#(F)B |
5.5 | 1450 | 15010 | 556 | |
HTFC 18#(F)Bb |
4 | 1450 | 15000 | 384 | |
HTFC 18#(F)Ba |
3 | 1450 | 13050 | 400 | |
HTFC 18#(F)Bc |
2.2 | 1450 | 9200 | 320 | |
HTFC 18#(F)Bf |
5.5 | 960 | 16335 | 350 | |
HTFC 18#(F)Bg |
4 | 960 | 15125 | 270 | |
HTFC 18#(F)Bh |
3 | 960 | 14000 | 200 | |
HTFC 18#(F)Bi |
2.2 | 960 | 12200 | 170 | |
| 20 | HTFC 20#(F)Bb |
15 | 1450 | 23720 | 950 |
HTFC 20#(F)Ba |
11 | 1450 | 21500 | 900 | |
HTFC 20#(F)B |
7.5 | 1450 | 20000 | 640 | |
HTFC 20#(F)Bc |
5.5 | 1450 | 16684 | 570 | |
HTFC 20#(F)Bf |
4 | 1450 | 15892 | 430 | |
HTFC 20#(F)Be |
3 | 1450 | 13700 | 370 | |
HTFC 20#(F)Bg |
5.5 | 960 | 20050 | 301 | |
HTFC 20#(F)Bh |
4 | 960 | 17200 | 260 | |
HTFC 20#(F)Bi |
3 | 960 | 15418 | 200 | |
| 22 | HTFC 22#(F)Bc |
18.5 | 1450 | 30800 | 1050 |
HTFC 22#(F)Bb |
15 | 1450 | 29350 | 850 | |
HTFC 22#(F)Ba |
11 | 1450 | 26136 | 720 | |
HTFC 22#(F)B |
7.5 | 1450 | 22000 | 620 | |
HTFC 22#(F)Bf |
5.5 | 1450 | 16632 | 550 | |
HTFC 22#(F)Be |
4 | 1450 | 16000 | 430 | |
HTFC 22#(F)Bg |
7.5 | 960 | 25000 | 300 | |
HTFC 22#(F)Bh |
5.5 | 960 | 23000 | 250 | |
HTFC 22#(F)Bi |
4 | 960 | 20000 | 200 | |
| 25 | HTFC 25#(F)Bd |
22 | 1450 | 39800 | 850 |
HTFC 25#(F)Bb |
18.5 | 1450 | 36000 | 800 | |
HTFC 25#(F)Ba |
15 | 1450 | 34300 | 710 | |
HTFC 25#(F)B |
11 | 1450 | 29000 | 720 | |
HTFC 25#(F)Bi |
7.5 | 1450 | 22400 | 630 | |
HTFC 25#(F)Bj |
15 | 960 | 35500 | 470 | |
HTFC 25#(F)Bk |
11 | 960 | 31000 | 390 | |
HTFC 25#(F)Bl |
7.5 | 960 | 28400 | 300 | |
HTFC 25#(F)Bm |
5.5 | 960 | 23700 | 260 | |
HTFC 25#(F)Bn |
4 | 960 | 21900 | 200 | |
| 28 | HTFC 28#(F)Bd |
30 | 1450 | 46020 | 1010 |
HTFC 28#(F)Bc |
22 | 1450 | 44200 | 750 | |
HTFC 28#(F)Bb |
18.5 | 1450 | 38940 | 840 | |
HTFC 28#(F)B |
15 | 1450 | 33200 | 830 | |
HTFC 28#(F)Ba |
11 | 1450 | 27200 | 700 | |
HTFC 28#(F)Bf |
7.5 | 1450 | 20150 | 550 | |
HTFC 28#(F)Bh |
18.5 | 960 | 42480 | 630 | |
HTFC 28#(F)Bi |
15 | 960 | 32020 | 480 | |
HTFC 28#(F)Bj |
11 | 960 | 34360 | 450 | |
HTFC 28#(F)Bk |
7.5 | 960 | 26070 | 420 | |
| 30 | HTFC 30#(F)B |
45 | 1450 | 57600 | 1010 |
HTFC 30#(F)Be |
37 | 1450 | 57000 | 1050 | |
HTFC 30#(F)Bd |
30 | 1450 | 54240 | 950 | |
HTFC 30#(F)Bc |
22 | 1450 | 46488 | 900 | |
HTFC 30#(F)Bb |
18.5 | 1450 | 41720 | 750 | |
HTFC 30#(F)Ba |
15 | 1450 | 32184 | 900 | |
HTFC 30#(F)Bf |
11 | 1450 | 19100 | 800 | |
HTFC 30#(F)Bg |
30 | 960 | 59600 | 680 | |
HTFC 30#(F)Bh |
22 | 960 | 51256 | 630 | |
HTFC 30#(F)Bo |
18.5 | 960 | 46488 | 750 | |
HTFC 30#(F)Bi |
15 | 960 | 44000 | 550 | |
HTFC 30#(F)Bj |
11 | 960 | 35760 | 500 | |
HTFC 30#(F)Bk |
7.5 | 960 | 29800 | 400 | |
HTFC 30#(F)Bl |
5.5 | 960 | 26230 | 250 | |
| 36 | HTFC 36#(F)Bk |
45 | 1450 | 71000 | 1150 |
HTFC 36#(F)Bj |
37 | 1450 | 55840 | 1150 | |
HTFC 36#(F)Bi |
30 | 1450 | 48800 | 1100 | |
HTFC 36#(F)Bh |
22 | 1450 | 39800 | 1000 | |
HTFC 36#(F)Bg |
18.5 | 1450 | 34450 | 950 | |
HTFC 36#(F)Bd |
45 | 960 | 76700 | 910 | |
HTFC 36#(F)Bc |
37 | 960 | 68900 | 850 | |
HTFC 36#(F)Bb |
30 | 960 | 60580 | 800 | |
HTFC 36#(F)Ba |
22 | 960 | 54700 | 630 | |
HTFC 36#(F)B |
18.5 | 960 | 49900 | 600 | |
HTFC 36#(F)Be |
15 | 960 | 50500 | 430 | |
HTFC 36#(F)Bf |
11 | 960 | 45150 | 350 | |
| 40 | HTFC 40#(F)j |
55 | 1450 | 89400 | 1150 |
HTFC 40#(F)Bi |
45 | 1450 | 71600 | 1150 | |
HTFC 40#(F)Bg |
37 | 1450 | 59600 | 1100 | |
HTFC 40#(F)Bh |
30 | 1450 | 51200 | 1100 | |
HTFC 40#(F)B |
55 | 960 | 84000 | 1100 | |
HTFC 40#(F)Bb |
45 | 960 | 79900 | 1000 | |
HTFC 40#(F)B0 |
37 | 960 | 75000 | 900 | |
HTFC 40#(F)Ba |
30 | 960 | 70000 | 750 | |
HTFC 40#(F)Bd |
22 | 960 | 51260 | 750 | |
HTFC 40#(F)Be |
18.5 | 960 | 50100 | 660 | |
HTFC 40#(F)Bf |
15 | 960 | 48872 | 500 | |
